FlowLighting Inferno - Million Color LED UB Kit
All Customer Questions
Question
can you use these lights all year round?
Answer
You can!
Question
if i was to buy 3 inferno multi color kits ,i want to wire two up so they stay a solid color and have the third as a rotating multi color .if i was to use the remotes to change them would they all change or do they all have the same frequenceys or are they all indivial ? and the same question for the interior lighting? - by pat (attleboro ma)
Answer
The infrared remotes all operate on the same signal. You could place the remote displays in slightly different locations, or cover one of the remote displays when you don't want it to pick up the infrared signal from the remote.
Question
Do you have a "how to" on installing the inferno on a scion xb? - by Joshua (Lawton, OK)
Answer
You're in luck! Install an Underbody Kit on your Scion xB
Question
Is the ecu heat resistant? - by mike (minneapolis,MN)
Answer
The ECU is not heat resistant, it should be installed away from the engine bay.
I have my ECU mounted inside the glove compartment. Other Inferno users place the ECU under their seats.
Please visit our Forum also, we have an Installation section there.
www.oznium.com/forum/installation
I have my ECU mounted inside the glove compartment. Other Inferno users place the ECU under their seats.
Please visit our Forum also, we have an Installation section there.
www.oznium.com/forum/installation
Question
Would the ECU itself be waterproof so that I could mount it somewhere underneath my car? or do I have to hide it behind the dash? - by Jordan (Seal Beach, CA)
Answer
The ECU is not waterproof.
Question
What would you suggest to use to make a frame for a license plate that could be hooked up to the inferno kit? - by chuck (covington georgia)
Answer
We don't have anything that would work well for that. Sorry.
Question
How far away is the remote supposed to be able to work on this kit? My remote it seems has to be aimed like directly at the box and I cant seem to get it to work more than about 3 feet away. I have this mounted on the dash board of my car right above the steering wheel btw. - by Brian (Miami, FL)
Answer
The range is very limited for this remote. An option is to take apart the display and drill out the small hole for the sensor to increase the range.
Question
I have a plan to install inferno million color UB kit under my car and want to extend another 1 ft (4 tubes) for the interior also. Can I turn off Exterior tubes and can I turn on only interior tubes when I want to? If so do I need additional hardware or anything? - by aaung88 (Fort Wayne, IN)
Answer
The easiest way would be to run 2 separate ECU's
Question
I have a 00 Dodge ram with a 5inch lift plus 36" Tires and im worried that the light from the LED may not be as bright from that high up. If I buy the kit and decide I do not like it can I return it for full refund if its never been mounted? I plan on having a friend hold the tube up so I can see what it will look like and then make my decision- Thanks - by Jeremy (St Louis- MO)
Answer
Yes, you can return. Here is our Return procedures: http://www.oznium.com/returns
Question
whats the diferent between ice led ufo &flowlighting inferno - by zaidan (georgia)
Answer
There are many differences. The ICELED tubes are stronger than the V1 tubes, it is smoother, and is more expandable.
Question
can you pick your own music for the lights to sincronize with? - by zaidan (georgia)
Answer
Yes
Question
Can i run this kit from the cigarette lighter or do I need to go straight from the battery? I'm gonna be using a splitter, 2 - 1 foot tubes, and an extra 3 foot tube along with the Inferno.
Answer
Draw power directly from the battery.
Question
The yellow F150 you have showing the solid blue, what kit did he use. and where did he mount the light to get it to show thru his tube grille like that. - by Ronald
Answer
He's using the Inferno kit. Not sure where he mounted the tube. You can experiment with different placements of the tube until you get a desirable effect.
Question
Does this kit come with a rocker switch or is it some other type of switch and if so how hard it is to wire it to the rocker swith - by havis
Answer
Pre-wired Power cables and switch are included withe the kit.
Question
Can i buy a replacement front Tube? - by Adrian (Coachella CA)
Question
Is it possible to put the Inferno kit into a slow pulsing/fade pattern? Like a slow breathing? - by Joe (Atlanta)
Answer
No
Question
I just installed my inferno kit and i was wondering if the switch was suppose to be a main power switch to keep the kit off. I am able to run the inferno kit with the switch in both positions. Any ideas? - by Chris (Fairfield)
Answer
The switch that comes with the Inferno kit is a master kill switch.
You can turn it on/off by this switch or by the remote control.
You can turn it on/off by this switch or by the remote control.
Question
I'm most definately going to order the inferno kit for my "08 scion tc, but I was wondering how easy it is to hook up yourself. My friend is a car mechanic and is planning on hooking everything up for me but do any holes have to be drilled into the dash or things like that? I know nothing about cars and the set up of these types of things so I guess what I'm asking is how easy is it to do on your own? Directions are included im assuming?? - by Amy (Ohio)
Answer
The underbody kits do come with basic installation instructions.
Also please visit our Forum, there is a lot of great installation help there.
http://www.oznium.com/forum/
Also please visit our Forum, there is a lot of great installation help there.
http://www.oznium.com/forum/
Question
for the music interface feature to work do i need to hook up the provided rca cables into my radio, or does the kit have a kind of microphone sensor that will pick the sound..and interface that way - by Jorge (Miami, FL)
Answer
The remote control allows you to select between either Microphone Input -or- Direct Line-In Input.
You can use whichever you'd like. You can use either the built-in microphone to sense music, or you can use the provided RCA cables to sense music.
You can use whichever you'd like. You can use either the built-in microphone to sense music, or you can use the provided RCA cables to sense music.
Question
Is there a flexible wheel well kit for this? - by Eric (Michigan)
Answer
Nope.
Question
Is the Inferno kit water proof or water tight?
- by Norman (Waverly Hall, GA)
- by Norman (Waverly Hall, GA)
Answer
Both
Question
What are the Solid Colors? Is white one of them? Is it a clean white? - by Chris (Central Texas)
Answer
The Inferno kit can produce millions of solid colors. White is one of them, and it is the best "clean white" you'll ever see!
Question
What would you say about putting this on a '96 Ford F-250 with two inches of lift? Will it look good?
Answer
It will look great!

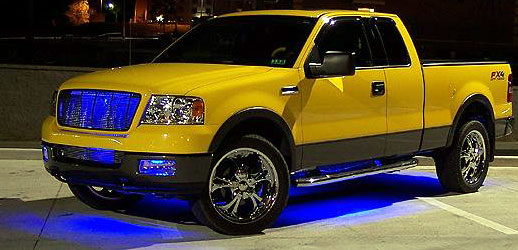

Here is a photo of a nice yellow F-150 with the Inferno kit (on solid blue).
Here is a photo of a nice yellow F-150 with the Inferno kit (on solid blue).
Question
i was wondering about how long these can be left running along with 6 one foot tubes without draining my battery. i also have 4 of the superflux led's and cathodes hooked up inside so if all of it was left running how long would it last? - by Ryan (Iowa, LA)
Answer
Depends on your battery. We'd guess at least a couple hours.
Question
Would I be capable of wiring up this kit, and with the extention/splitter and 2- 1 foot tubes, put the 1 foot tubes under my dash on the floor board and run with the underbody kit? - by Brian (Dayton, OH)
Answer
Yes, of course! We encourage you to do that.
Question
I would love to put these on my corvette but due to my exhaust I can't put a 3 foot tube on. Is it possible to sub two 1 footers for a three foot when buying the kit? - by GARPAR (Pgh.)
Answer
You could put a one footer in its place, yes. You could use two, however both tubes would produce the same pattern, instead of extending and acting like one single tube.
I bet you could rig up something under your Corvette. Just be creative!
I bet you could rig up something under your Corvette. Just be creative!
Question
I live in Canada, and we have incredibly harsh cold winters, should i be worried about -40 temperatures and high snow fall ( they dont always get to plowing the street quickly) damaging the tubes? Also, If i buy this kit, and assemble it only to find out some led's are burnt out, what is the warrenty on this item? Thank you so much :) - by Larissa
Answer
If installed properly, your Inferno should handle the winter no problem. The cold will be no problem. The snow might be a hazard, but as long as you aren't battling blizzard conditions every single day, you shouldn't worry. The warranty is a one-year manufacturer's warranty - if you have any problems with the kit that are not user or installation error, we'll fix it. Make sure to test your kit for functionality upon receiving it, before installing it on your vehicle.
Question
I read that the kit has 14 feet of tubes and can handle another 8 feet of tubes is there anyway to extend this?
Answer
No. However our new Inferno V2 is capable of handling a virtually unlimited number of tubes.
Question
Can I cut out the switch and fuse and just connect it to my own switch. And not use the one that came per wired? - by Alexander (Mount Carmel, PA)
Answer
Yes, you absolutely can use your own switch.
Question
Can you set it so there is one base color and then 1 "chaser" light going from tube to tube around your whole car? - by Alexander (Mount Carmel, PA)
Answer
Yes
Question
if i run 2 3 ft tubes end to end will the patters flow from one tube into the other as if theey were one tube or will the each do their own?
If i use the expansion adapter can i have it so that one of the tubes will come on only when my trunk is open but i can have all f the others on at the same time.
is their anyway i can get a kit with 5 3ft tubes and 2 4ft tubes? - by Mark (Mendon, NY)
If i use the expansion adapter can i have it so that one of the tubes will come on only when my trunk is open but i can have all f the others on at the same time.
is their anyway i can get a kit with 5 3ft tubes and 2 4ft tubes? - by Mark (Mendon, NY)
Answer
- Both tubes will do the same thing. The pattern is not extended.
- This is possible, however it takes some very custom wiring and is not recommended for the average user. It will also void any warranty.
- Yes, just purchase an Inferno kit and three 3-foot tubes from our Replacement Parts
- This is possible, however it takes some very custom wiring and is not recommended for the average user. It will also void any warranty.
- Yes, just purchase an Inferno kit and three 3-foot tubes from our Replacement Parts
Question
Is it recommended to take the tubes off in the winter - by Josh (Spring Valley, Il)
Answer
If you are not going to be using these in the winter, you could take them off... however the Inferno tubes are designed to take a considerable amount of abuse from the road.
Question
do the neons come with the wire that connects the neons to the power distributor, and all other necessary wires? - by andrew (Chicago, Illinois)
Answer
This LED underbody kit comes with all the wires that connect the LEDs to the power distributor, and all other necessary wires.
Question
In your opinion which would you purchase if money wasn't an object... Inferno's or ICELED UFO?
Answer
If you've got to pick just one, then go for: Iceled UFO!
I've got TWO Iceled UFO kits and one FlowLighting Inferno on my bagged Highlander.
I've got one FlowLighting Inferno and one FlowLighting Inferno V2 on my tC.
I've got TWO Iceled UFO kits and one FlowLighting Inferno on my bagged Highlander.
I've got one FlowLighting Inferno and one FlowLighting Inferno V2 on my tC.
Question
Can you make and program your own shows? also can you pause it on solid blue for as long as you'd like? - by andrew
Answer
You can not program your own patterns, however you can choose your own colors on some. And yes, you can pause on blue for as long as you wish.
Question
was wondering if u could make them blink for the directionals like if i was tuning right then half of the right front and rear would light and all of the right side would light - by Matt
Answer
No
Question
I previously asked if these had a domelight wire (as the StreetGlow kit does) and I was told that I could simply add a relay on the power line to turn it on when I opened my doors.
My question is: is the power button a momentary-push to turn the unit on, or is it more like an actual switch so if the unit loses power while it's On, it remains on when power is readded to the power line? - by John (Tinley Park, IL)
My question is: is the power button a momentary-push to turn the unit on, or is it more like an actual switch so if the unit loses power while it's On, it remains on when power is readded to the power line? - by John (Tinley Park, IL)
Answer
The power switch is a rocker switch. It is not momentary.
If the unit loses power, the LEDs turn off. As soon as power is re-applied, the unit turns on.
If the unit loses power, the LEDs turn off. As soon as power is re-applied, the unit turns on.
Question
Section 316.2397 of the Florida State Law expressly prohibits the display of red, blue, or flashing lights on a non-state vehicle. Are underground kits an exception to this law, or are certian functions of this kit prohibited in certain states? - by Travis (Ft. Lauderdale, FL)
Answer
Even if the law says they are legal, you could still get pulled over and hassled because the cops may not know the law. Even if they are illegal, you could go for years without getting pulled over because cops don't care enough, or might not see you. If you have some LEDs under your dash you will probably be ok. If you have flashing red and blue LEDs glued all around on the outside of your car, chances are, you'd get pulled over.
Trying to figure out the legality of LEDs in a certain area can be very difficult. It isn't as simple as looking up the vehicle code for your state. Vehicle code can be very confusing and conflicting. Even a call or email to your local police station can be misleading.
People have been told one thing and even had written proof, only to be pulled over and slapped with a ticket by an officer who may not know the intricacies of the law.
Regardless of the law in your area, there are things you can do to reduce your chances of being hassled.
Trying to figure out the legality of LEDs in a certain area can be very difficult. It isn't as simple as looking up the vehicle code for your state. Vehicle code can be very confusing and conflicting. Even a call or email to your local police station can be misleading.
People have been told one thing and even had written proof, only to be pulled over and slapped with a ticket by an officer who may not know the intricacies of the law.
Regardless of the law in your area, there are things you can do to reduce your chances of being hassled.
- Hide the light source so it is not directly visible from the road. Make a shield with a long piece of "L" aluminum or steel. Use black electrical tape to hide a section of the light.
- Take extra caution to obey all laws. If LEDs are perfectly legal in your area, and you are speeding just a few miles over the limit, a cop is more likely to give you a speeding ticket than if you had no lights on.
- Save the strobing red/blue for the car show or your driveway. Blue and red might be fine to cruise with as a solid color, but as soon as they strobe, you may cross the line as "impersonating a cop"
- Keep a copy of the vehicle code in your car. You can just print or copy the section that deals with lighting. Present it to the officer if you are pulled over.
- Respect police officers. They protect you when you are being shot at, they protect you when your house is broken into. Respect them and they should respect you.
Question
Do you sell a extention cable for the display so you have more options in the mounting location of the remote display ? Or is this something I can pick up from a radio shack or anything. I tried a ps2 computer cable but it is close but not the same.
Answer
We do not sell an extension cable for the display. You can try a larger electronic store for the proper cable.
Question
How bright are these really? I have seen the video but it might just be the video.
Answer
I've heard nothing but praise from customers. They all think it is bright. Buy one, see for yourself. If you don't like it, send it back and get a full refund.
Question
Is there more detailed info on how to use the remote other than in the wiring instructions, because those seem pretty vague. - by Adam (St.Joseph Illinois)
Answer
Try this: http://www.oznium.com/forum/topic12715
Question
Can we make it where the colors stay the same and don't stobe because in North Carolina we can't have lights that strobe. - by Emily (Mount Airy, NC)
Answer
Yes. You can make it where the colors stay the same and don't strobe.
Question
Someone told me there was a video demo of this product. Where can I find that?
Answer
Here is the official video from Oznium:
There are also two customer-submitted videos right on the Inferno product page (www.oznium.com/inferno).
There are also two customer-submitted videos right on the Inferno product page (www.oznium.com/inferno).
Question
Can you do strobe patterns like the UFO kit, also or even the ghost light that floats over the solid color?
Answer
Yes
Question
Can you do solid, non-flashing colors on this kit? Perhaps orange? - by Paul (Naples, FL)
Answer
Yes, of course.
Question
How many volts does this kit put out? - by Antonio (Forney Texas)
Answer
It both uses and puts out 12 volts.
Question
Do you have a wiring diagram to how these hook up? - by Mike
Question
Is there a wheel well kit for the inferno ?
Answer
No, but you can use 1-foot tubes. If you think you can't fit them in the wheel well, think again. Be creative. They don't have to go on top. In fact, they'd give the best effect shining from the bottom up. I guarantee if you remove the wheel, and peek your head around the wheel well area, you can find a place to mount them.
Question
Is this kit expandble or would you have to buy a separate kit to run more than just the 4 tubes ?
Question
Can you put all tubes on 2 colors (for example, half blue and half white)? - by Trevor (Knoxville, Tn)
Answer
Yes.
Question
Can I choose a different color for every tube? - by antonio (forney)
Answer
Sorry that feature is not available.
Question
How many LEDs does this kit have, and how far are they spaced. Thanks!
Answer
378 LEDs

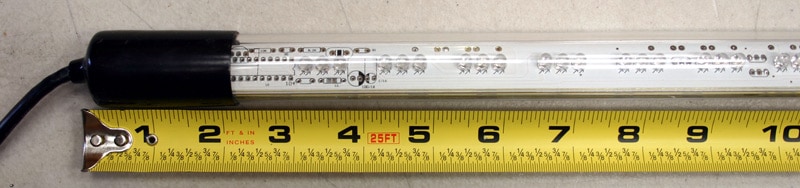

The spacing is tricky to describe, but check out this image.
The spacing is tricky to describe, but check out this image.
Question
Can you power this kit with a 120v to 12v adapter? Im interested in using this kit for a glass block bar in my basement. If I can, will I need a certain converter, or will anything work? - by Bill
Answer
Yes. You can use any converter that puts out 12 volts DC with at least 2 to 3 amps.
Question
Does this have a power on/off mode and can you get it in longer tubes than the 3 foot and 4 foot sections?
Answer
There is a power button on the remote control. There is also a physical power switch.
3 and 4 foot sections are the longest available. If you need longer tubes, why not put 2 tubes end to end?
3 and 4 foot sections are the longest available. If you need longer tubes, why not put 2 tubes end to end?
Question
How many amps does the kit draw on a 2006 Scion tC? - by Will (Chesterfield, VA)
Answer
The kit draws about 2 amps on any vehicle.
Question
Myself and two friends are looking at to get the Inferno kit. If ordering more than one, are there any perks, such as cheaper shipping? Or even pack them as one package instead of 2 or 3? And is it possible to mark as "gift" for shipping purposes? - by Mike (Edmonton Alberta Can)
Answer
Sure! We can bundle the kits together so they ship as one package. It will save a lot in shipping. When you're ready order, give us a call or just order online. Put a note in the order comments reminding us to pack them together and discount the shipping cost. It is not possible to mark as "gift" for shipping purposes.
