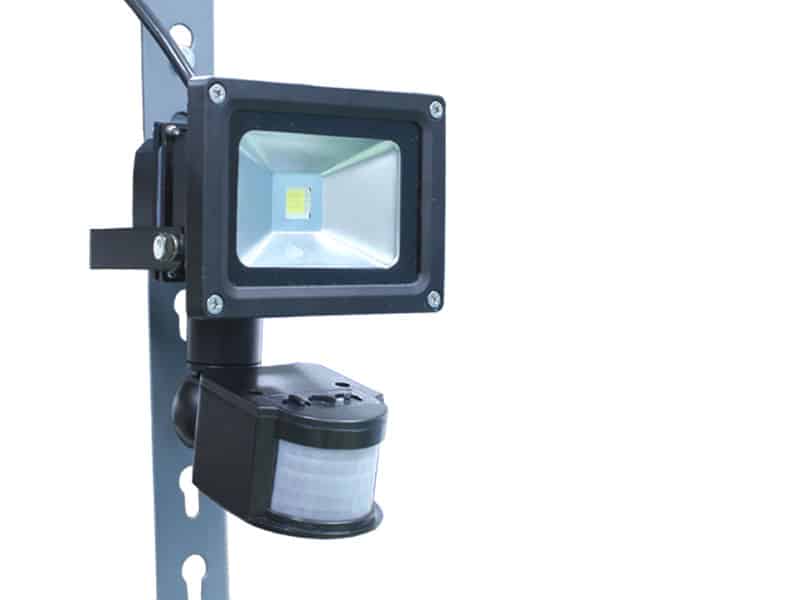

Use this anywhere you need an extra flood of light, like a back door, porch, front entrance, or outside of a barn/garage. This security flood light uses the latest LED technology, so it has extremely low energy consumption, yet is super bright and powerful.

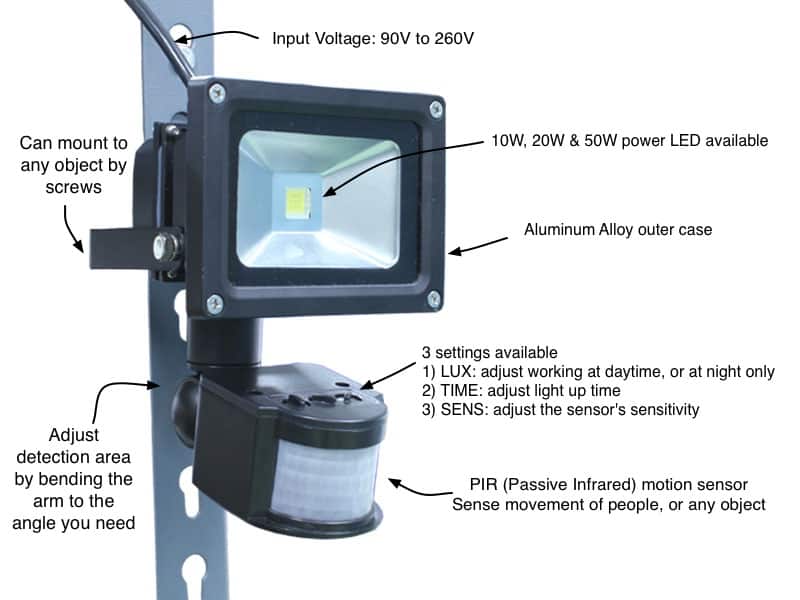

Works like any other security flood light with built-in motion (PIR) detection, ambient light sensor and adjustable timer.

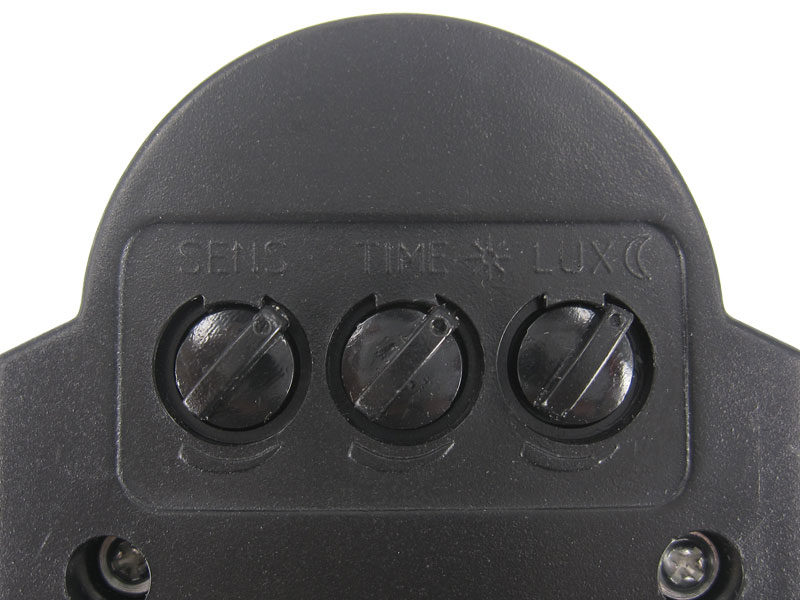

3 settings available on the sensor
LUX: When set to the "SUN" icon, the sensor works even if it is light outside; when set to the "MOON" icon, the sensor works only when it is dark out.
TIME: The light duration is from 5 seconds up to 8 mins. The time starts counting when no movement is detected by the sensor.
SENS: Adjust the sensor's sensitivity to movement. When it is set to the highest sensitivity, it can detect even small movements.
Motion Sensor Specifications:
Detection distance: up to ~12m (40 feet)
Detection Range: ~180 degree angle
Switch-ON Time: 5 sec to 8 mins
Input Voltage: 90V - 260V AC
Beam Angle: 120 degree
Lamp Body Material: Aluminum Alloy
Lumens: 100 Lumen / Watt
Color temperature: 6500K (Cool White)
Working Temperature: - 40 to + 45 degrees celsius (-40 F to 113 F)
IP Class: IP65
Lifespan: 50,000 hours

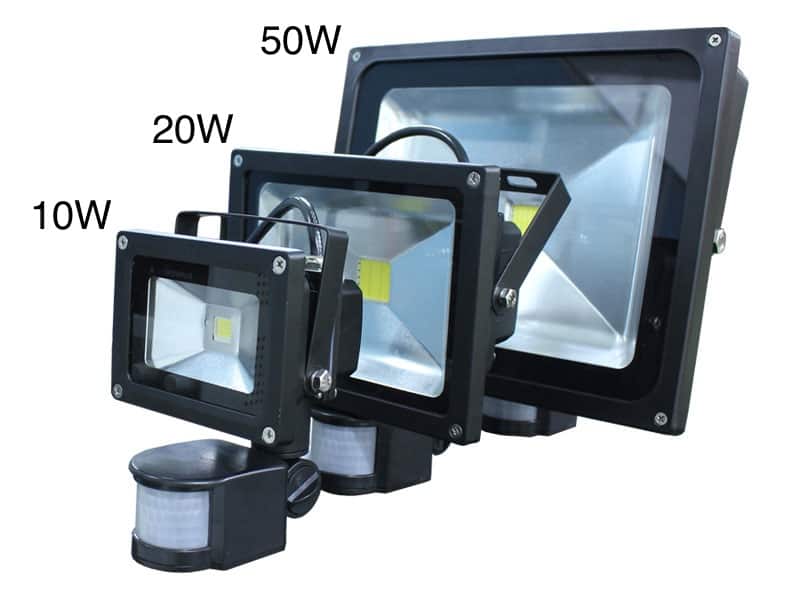

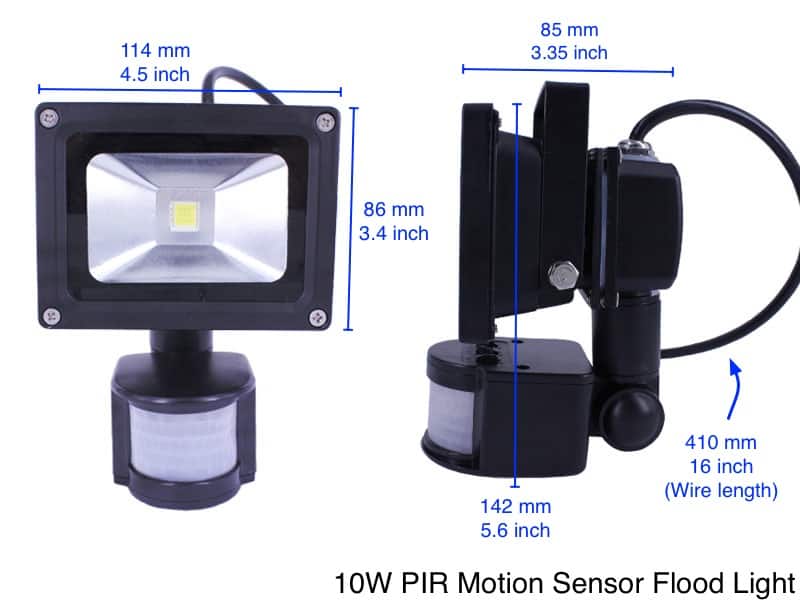

10 W / 1000 Lumen / 0.63kg (N.W.) / 0.75kg (G.W.) / 18 x 12.5 x 12.5 (cm)
20 W / 2000 Lumen / 1.20kg (N.W.) / 1.40kg (G.W.) / 22 x 19 x 14 (cm)

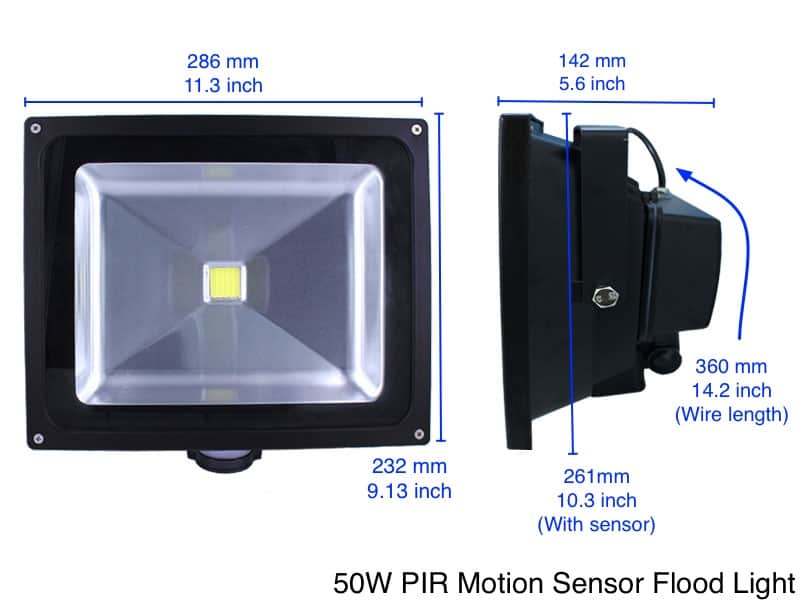

50 W / 5000 Lumen / 2.87kg (N.W.) / 3.20kg (G.W.) / 29.5 x 28 x 17 (cm)
Outdoor Motion Sensor LED Light - Security Flood Light
Motion Sensor Flood Light Technical InfoBrown: Load/Hot
Customer questions & answers
can this be adapted with the Oznium "Fade-in Fade-out LED Dimmer" so that the motion sensor causes fade-in and the time-out trigger causes fade-out?
Yes, it can work like that. There are wiring diagrams on our website under the Fade-in Fade-out dimmer.
how can I extend the time the light stays on?
There are three buttons on the top of the motion sensor, the middle one is for time adjustment.
Can I hardwire this light to the Romex in an electrical outlet box? Specifically the 10 watt light.
Cody Walraven from Port Lavaca, TX

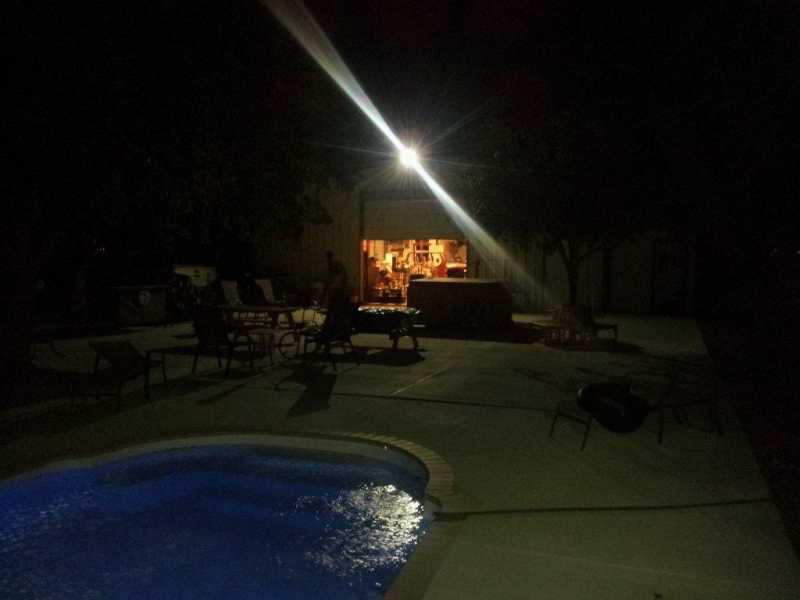

Great light, super bright, and very light weight. I have installed one 20 Watt and one 50 Watt. Both incredibly bright, and the motion sensor works perfectly.
Had electrician test the 50 watt and at 110 volts it is pulling .75 of an amp (3/4 - .75 - three quarter). Very Nice...
