|Color||MCD (Min.)||MCD (Typ.)||Voltage (Min.)||Voltage (Typ.)||Wavelength|
0805 Surface Mount LEDs
0805 Surface Mount LEDs Technical InfoViewing Angle: 120 degrees
Current: 20 mA

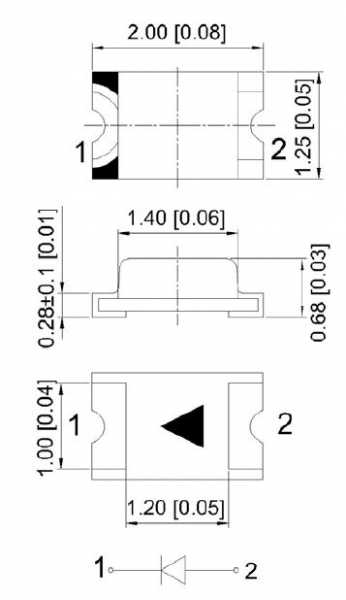

All dimension units are in millimeters with a tolerance of +- .02 mm. An epoxy meniscus may extend about 1.5mm down the lead.
Customer questions & answers
It will require quite a lot of patience, and fine motor skills to do the soldering properly.
If you need a lot of them (say, 100 pcs ), we'll be happy to do it for you.
Slightly difficult to work with, but great reward.
Robert Mundt from Henderson, NV
I bought these and the slightly smaller 0603 leds to try and fix some back lighting on a Jandy pool wall controller that the lcd lighting went out on. I opted for these after receiving them as they were slightly bigger. I bought 10, luckily, as I went through 3-4 of them just testing stuff out (Not my first time soldering by a long shot, but my first time working with something this small). I watched a short video on Youtube and then went to work. Working with these were easier than I had expected, although they are TINY! I ended up only using 2, where the Jandy unit had 4x 5mm equivalent leds. I ended up using the legs of the old leds to solder in these tiny guys. I only used 2 and WOW! Not quite as bright as the 4x OE Jandy leds, but I didn't want them that bright. Worth every penny, and will definitely use these again when fixing other small electronics. As always, thank you Oznium for a fantastic product.
