Reliable IP67 waterproof AC to DC adapter ensures a good lighting effect and a long lifespan for all 12 VDC LED products. Suitable for outdoor application.
✅ Constant voltage output
✅ Universal AC input / full range
✅ Withstand 300VAC surge input for 5 secs
✅ Cooling by free air convection
✅ Small and compact size
✅ IP67 waterproof
✅ Class II power unit
✅ UL certificated
❗️ Color code for high voltage wires:
Yellow wire = ground
Blue and Brown wires = Hot/Neutral
From adapter: Blue is Neutral / Brown is Live
MEAN WELL LPV Waterproof AC to DC Adapter

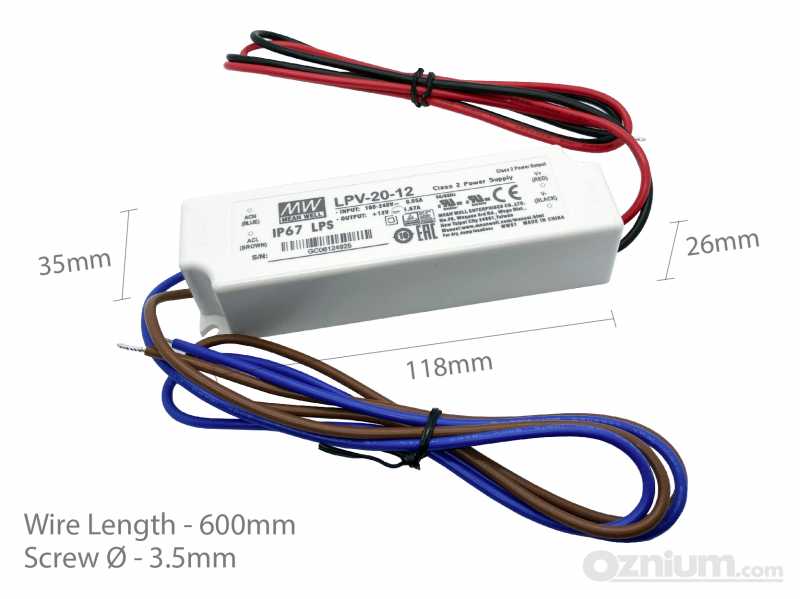

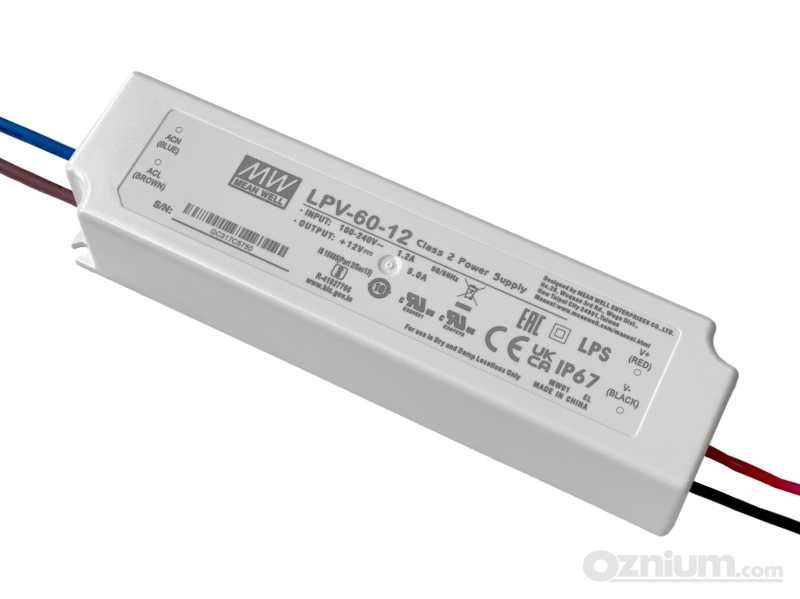

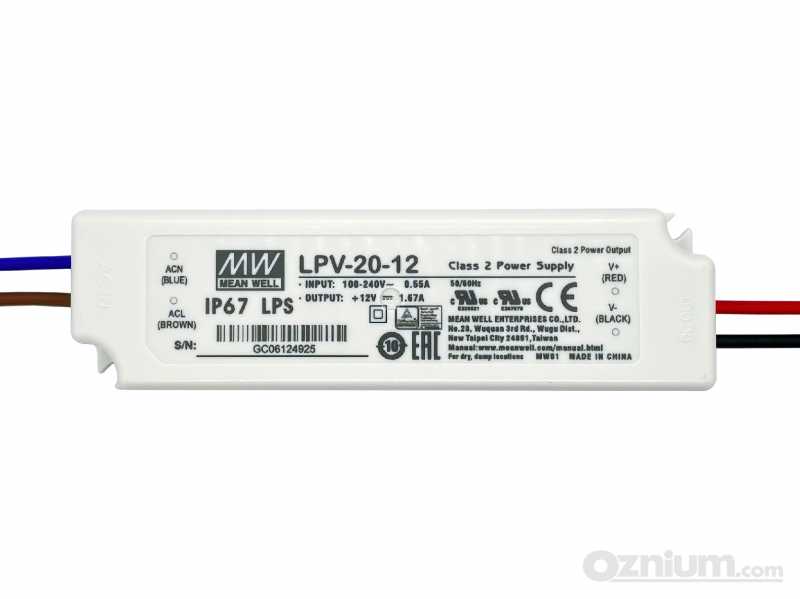

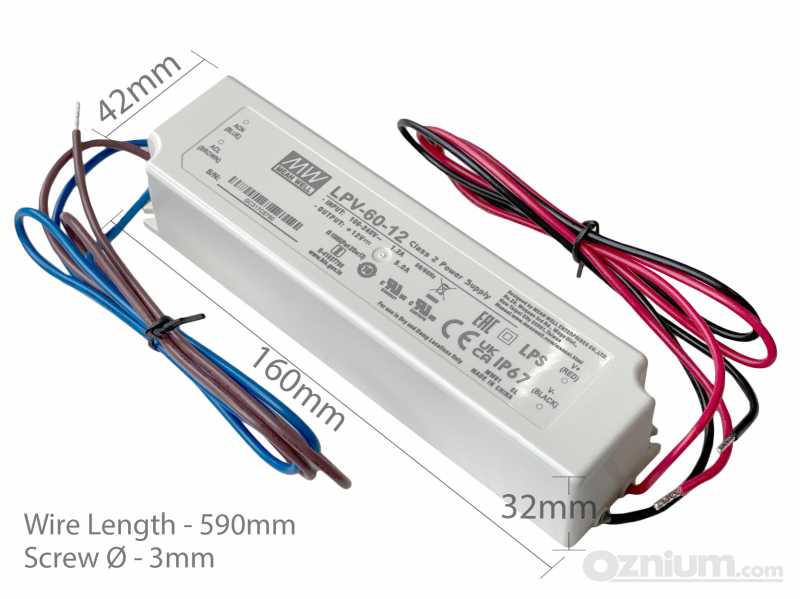

MEAN WELL Waterproof AC Adapter Photos
MEAN WELL Waterproof AC Adapter Technical Info
| Input Voltage | 90-264VAC (50/60Hz) |
| Output Voltage | 12VDC |
| Type | Constant Voltage |
| Certification | UL Listed |
| Housing | Fully isolated plastic housing |
| IP rating | IP67 |
| Operating Temperature | -30°C ~ 70°C |
| Dimming | Without dimming function |
| Protect Type | Hiccup mode, recovers automatically after fault condition is removed |
| Termination Style | Wire leads without any plug |
| Model Number | Max. Current | Dimension |
| LPV-20-12 | 1.67 A | 118 x 35 x 26 mm |
| LPV-60-12 | 5 A | 160 x 42 x 32 mm |
