Customizable LED strips can add a pretty awesome effect to anything. So, if youre looking to add a LED strip and have it turn on with a dome light, there are several steps you need to go through first:

Determine if your dome light is positive or negatively switched

Which wire is disconnected when the light is off and vice versa

Establish the amperage draw of your LED strip

Calculate the proper fuse and diode to use

Once youve established these factors, there are two diagrams to use

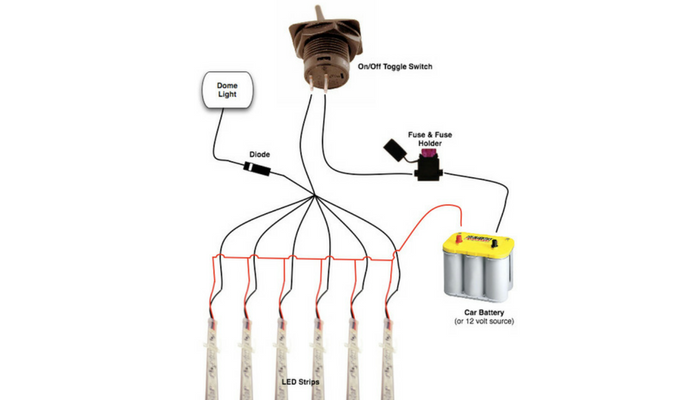

Diagram 1  If your dome light is negatively switched:

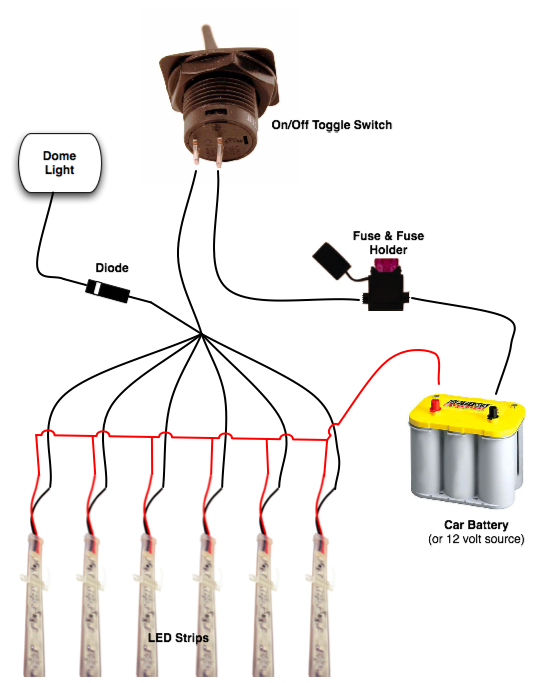

Diagram 2  If your dome light is positively switched:

Read common questions and answers on LED Bolts

LED Tipped Toggle

## Extra Information

Phil from Oznium

Youve got the right idea. Please let me know if I can clarify anything below. First, you need to figure out if the dome light is positively or negatively switched. This means, is the positive or negative wire always connected? Which wire is disconnected when the dome light is off? Which wire is connected when the dome light is on? Most cars Ive come across use a negatively switched setup. This would mean the negative/ground wire is connected and disconnected, and the positive wire is always connected.

Calculating the proper fuse Once youve figured out the amperage draw of each LED strip from thetechnical info page, you can then calculate the appropriate fuse size. In your case, 6 x 9.5? LED strips would draw just under 1 amp. The purpose of a fuse isnt really to protect the LED strip, but rather protect your wiring in case of a short. In this case, you can use a 3 amp fuse and be just fine.

Calculating the proper diode Diodes have an amperage rating, and you might as well get that is capable of handling anywhere from 2 to 5 amps.

The diode prevents current from running back into the dome light when you flip your on/off switch.

The diode is like a one-way valve. Current can flow from the dome light, but not back to it. Check this out:https://www.the12volt.com/diodes/diodes.asp
