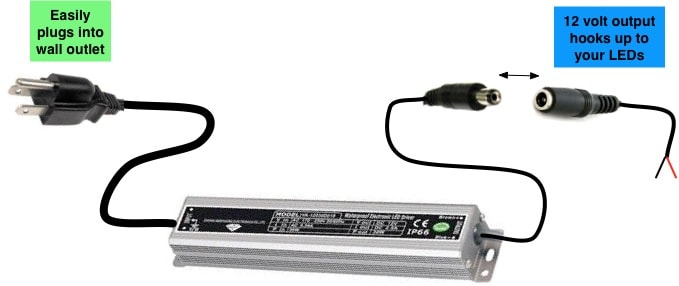

Simple and compact Waterproof LED Transformer plugs into any wall outlet, and puts out stable 12 volt dc power.
We also have a non-waterproof AC Adapter too for indoor use.
It accepts an input voltage from AC 86V-264V (50/60Hz). So you can easily use it on 110V, or 220V systems.
It is completely sealed, with a waterproof rating of IP68.
This Waterproof LED Transformer ensures a good lighting effect and a long lifespan for all 12 volt LED products.

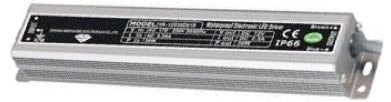

Waterproof LED Transformer - Outdoor AC Adapter

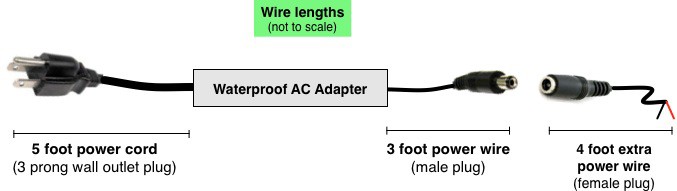

Waterproof AC Adapter Technical InfoPhysical dimensions of each size:
|420 mA||4 1/2" x 1 1/2" x 1"|
|1.25 Amp||4 1/2" x 1 9/6" x 1"|
|2 Amp||5 1/4" x 2" x 1"|
|5 Amp||6" x 2 5/8" x 1 5/8"|

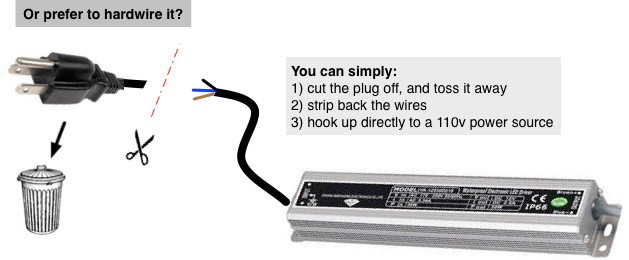

Color code for high voltage wires if you want to cut off the wall plug:
Yellow wire = ground
Blue and Brown wires = Hot/Neutral
Customer questions & answers
What size Waterproof LED Transformer - Outdoor AC Adapter should I use to power a single 3W High-Intensity LED Flood Light with a Mini LED Dimmer Knob on the LV side? Or can I use a MEAN WELL LPV Waterproof AC to DC Adapter?
I would suggest the Mean Well Adapter. That will give you plenty of power for the led and also if you wish to add more.
Hi, How many of the 12v 0.5Watt LED Bolt lights can the 5A version of this power supply power in parallel? In theory, with 37mA per LED Bolt, it should be around 135 LED's?
Yes, you are correct but it is best to not wire so many leds to use all of the 5000 mA from the adapter. Using 128 to 130 leds would be suggested.
Can I use a wall dimmer before the power supply to control the lighting?
