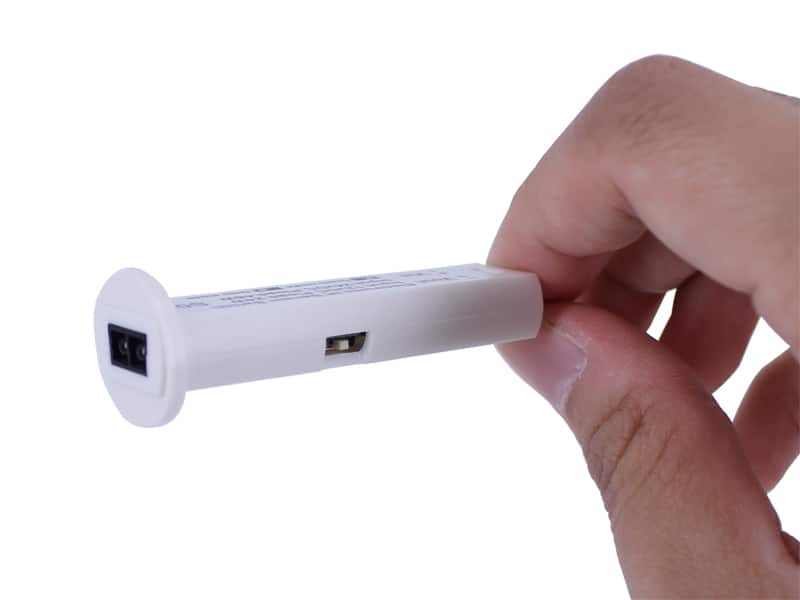

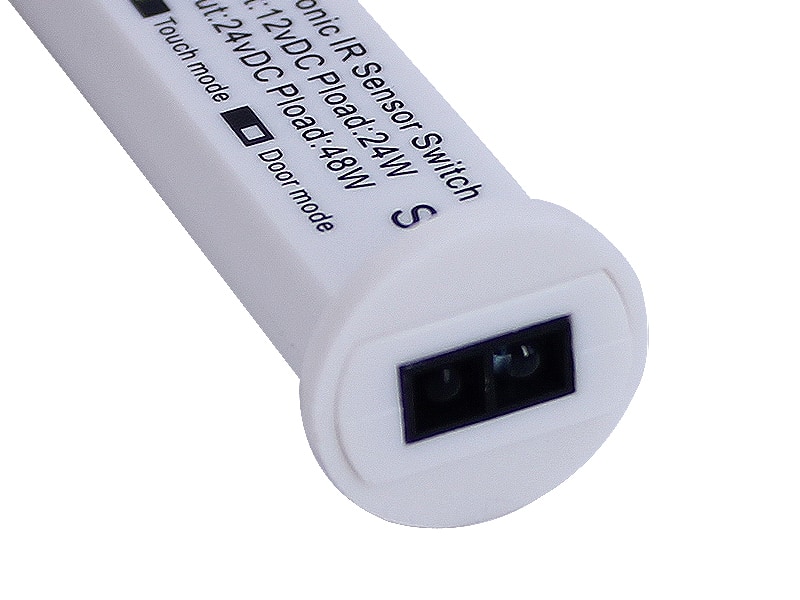

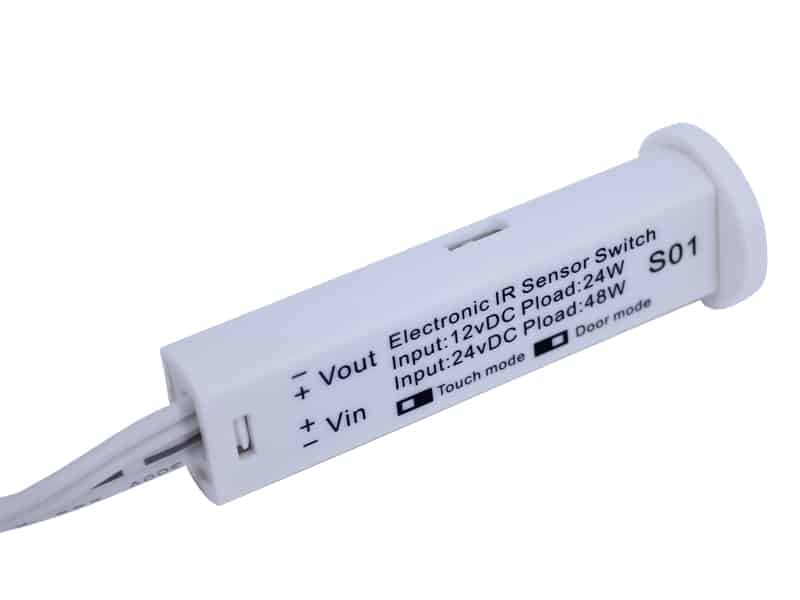

Dual mode IR Sensor Switch
IR Sensor Switches are ideal to reduce the spreading of the corona virus. Unlike any physical switches, these sensor switches are non-invasive, relatively inexpensive and can be used to switch on/off any 12V LEDs and devices from a distance.
Combined IR Proximity Sensor Switch and IR Touch-less Sensor Switch functions into ONE!

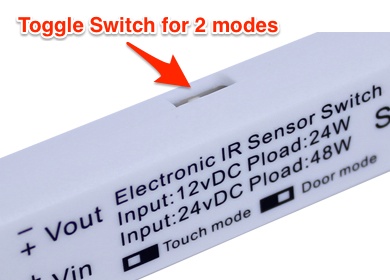

Door mode and Touch mode
Door mode - Use this mode when you place this sensor inside your cabinet! LED light connected will turn on when you open the cabinet while it will turn off when the cabinet is closed. Function is same as the IR Proximity Sensor Switch
Touch mode - Turn on or off you light by your hand movement under the touch mode! When you shake your hand in front of the sensor, you can turn on the LED light; shake again to turn it off. Function is same as the IR Touch-less Sensor Switch
Small size and easy installation: Simply drill a hole and put the wires through it. All wires and the sensor body would be hidden behind the panel.
Customers who viewed this item also viewed
IR Touch-less Hand Waving Sensor Switch
Features: Simply wave your hand over the infrared sensor to light up your LEDs. Wave your hand over again to turn your LEDs off.
IR Proximity Sensor Switch
Features: When something is close to the infrared sensor, your LEDs will turn off. When nothing is directly in front of the infrared sensor, your LEDs will light up! This IR sensor can work as an IR Momentary switch
IR Sensor Switch Technical Info
Working Voltage: DC 12V or 24V
Rated Power: 24/48W
Current Draw in Standby: 8 mA
Maximum Angle of Detection: 100 degree
Distance of Detection: 3-10 cm
Dimensions: 0.67" x 0.67" x 2.08" (17 x 17 x 53 mm)
Detection Range: 3.5 inches (9 cm)

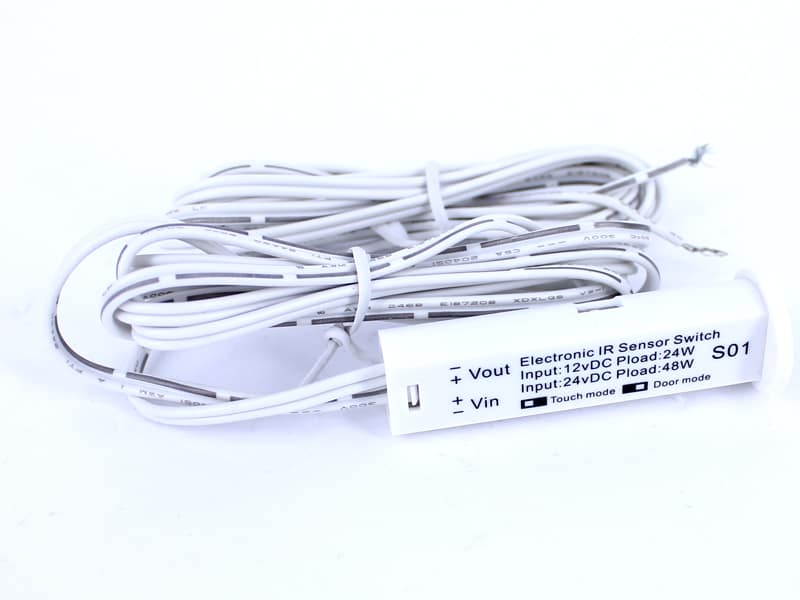

Wire length on both sides: 100cm
Wire gauge: 24AWG
Customer questions & answers
Used ir switch to turn on puddle lights when door opens on a silverado pickup
Ron Blevins from Chardon, OH
I installed one of these IR switches in the bottom of each of the front doors on my pickup truck to turn 3 of the 11mm light bolts on and off when that doors is opened. I tapped into the door lock and unlock feed for power. When I open the door the IR switch turn on the 3 bolt lights and off when that door is closed. Was a lot easier that chasing wires to the dome circut. Great product and would buy again. Easy to understand how to wire up too. I have one suggestion and that is to have threads and a lock nut like on the light bolts for easy installs. Other than that sugeestion these things are a really great idea.
