On Off LED Toggle Switch | Oznium |
Elegant Appearance
The LED Toggle Switch bezel is 3mm thick only, with a nut mounted on the back of LED Toggle Switch, it looks very clear after mounted on a panel.
The LED Toggle Switch bezel is 3mm thick only, with a nut mounted on the back of LED Toggle Switch, it looks very clear after mounted on a panel.
IP65 Surface Waterproof
The internal components are protected by a hidden sealing o-ring, the LED toggle switch surface is IP65 rated.
The internal components are protected by a hidden sealing o-ring, the LED toggle switch surface is IP65 rated.

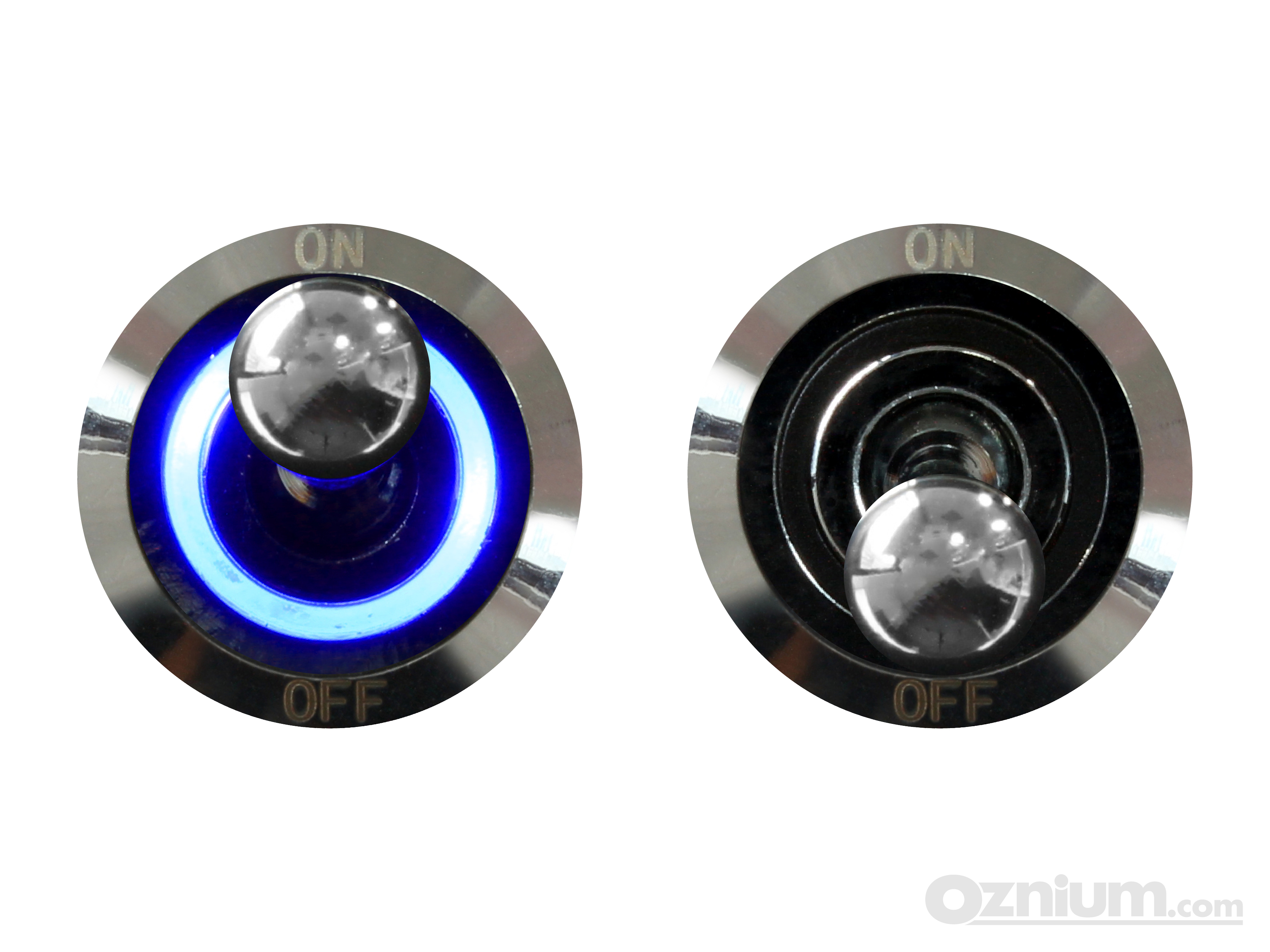

Latching Style LED Toggle Switch
The LED ring will be illminated when the LED toggle switch is actuated and the lever will remain in that position until you push it back.
The LED ring will be illminated when the LED toggle switch is actuated and the lever will remain in that position until you push it back.
Super Durable
The LED toggle switch is made of the high quanlity components. With the solid structure, mechanical life is more than 500,000 cycles.
The LED toggle switch is made of the high quanlity components. With the solid structure, mechanical life is more than 500,000 cycles.
High Quality Housing
Monolithic chrome housing of LED Toggle Switch is made from the precision CNC machine, the metallic texture is luxury level.
Monolithic chrome housing of LED Toggle Switch is made from the precision CNC machine, the metallic texture is luxury level.
Pre-wired
Every LED Toggle Switch comes pre-wired with 3 feet of wire, a rubber o-ring, split lock washer and a hex nut.
Every LED Toggle Switch comes pre-wired with 3 feet of wire, a rubber o-ring, split lock washer and a hex nut.
What Is The On Off LED Toggle Switch?
The On Off LED toggle switch is the one of the popular electrical switches by pushing the operating lever up and down or left and right for switching ON and OFF the electrical circuits. Even if you are wearing the gloves, you still can push the operating lever for switching ON and Off easily.The Latching Style LED Toggle Switch
The latching style LED toggle switch changes its position when actuated and the lever will remain in that position until you push it back. The LED ring will be illuminated when the LED toggle switch is actuated, it can be seen obviously even using at the dark environment.The LED Toggle Switch Is Super Durable
A high-quality monolithic chrome housing with IP65 rated. With the solid structure, mechanical life of the LED Toggle Switch is more than 500,000 cycles as well as electrical life is more than 200,000 cycles.Easy Installation
The On Off LED toggle switch usually mounted in a box or on the panel, you just need to simply drill a 16mm hole and using a nut for installation. With a slim and small panel design, it looks elegant after mounted on a panel. As well as the On Off LED toggle switch is come with three wires, you don't need to solder the wires by yourself.
Simple Wiring
Wiring this On Off LED Toggle Switch is so simple, you just need put red & black wires to power source and brown wire to your LED "+" as below pic:
Looking For Custom Made LED Toggle Switch?
We can custom made the LED toggle switch which is perfect fit for your applications. Such as:- Input Voltage (From 5VDC to 48VDC)
- Housing Material (Brass, Stainless Steel etc)
- Housing Color, shape, size etc.
Modifying latching to momentary style LED toggle switch as long as you can order a certain quantity of the LED toggle switch. Please don't hesitate to contact us for further discussion, we are happy to assist with.
Related Accessories
Flush Mount LED Bolt
IP68 waterproof LED bolt lights, small but bright and certified by UL.
Ultra Thin LED Light Bar
Waterproof Slim LED Light Bars
Flush Mount LED Navigation Lights
USCG Approved Flush Mount LED Navigation LED Lights
Drill Bit
Buy them conveniently from us in various sizes to match the diameter of your LED Bolts: 6mm, 11mm, and 16mm.
Rubber O-Ring
For a water-tight seal around the bolt bezel and your panel.
Replacement Nuts
Need more nuts? You can buy extras.
DC Barrel Jack Adapter
These adapters allow you to convert your plug / jack / wires to each other.
Wire Splice Connector
A quick and easy way to splice LED wires together for your lighting project.
2 Core Marine Cable
Used for connecting LED strips or pretty much any other LED product, and extending wires.
18 Gauge Hookup Wire
18 gauge wire is very flexible and is perfect for installing cathodes, LEDs, meteor tubes, or switches.
On Off LED Toggle Switch Photos
Action Shots
On Off LED Toggle Switch Technical Info
| Operating Voltage Range | 12VDC |
| Max. Current | 5A@12VDC |
| IP Rating | IP65 |
| Polarity Sensitive | Yes |
| Housing Material | Chrome |
| Thread Size | M16 |
| Drill Hole Sizes | 16mm |
| Connection Type | Pre-wired |
| Wire Length | 3.3 feet, 1050mm |
| Wire Gague | 22 AWG |
| Working Mode | Latching |
| Mechanical Life | 500,000 Cycles+ |
| Electrical Life | 200,000 Cycles+ |
