High Intensity Flush Mount LED Bolt

Name: Flush Mount LED Bolt
Brand: Oznium
SKU: P442
Price: 6.99 USD
Availability: InStock
Rating: 4.9 (420 reviews)

(420 reviews)

We now offer a Bi-color LED bolt.

New for 2021. 100% Oznium exclusive. Designed from the ground up, to be bright, and sleek.

The applications are endless. The only limit is your imagination. You can use them for architectural accents, indoors, outdoors, in walkways, in railings, decks, etc. Use them for car lighting, in the front of your car, back of your car, or even inside your car. Use them for marine or industrial applications; RoHS compliant also! Not only does the CNC'ed billet aluminum housing look cool, it also acts as a heat sink for the high power LED.

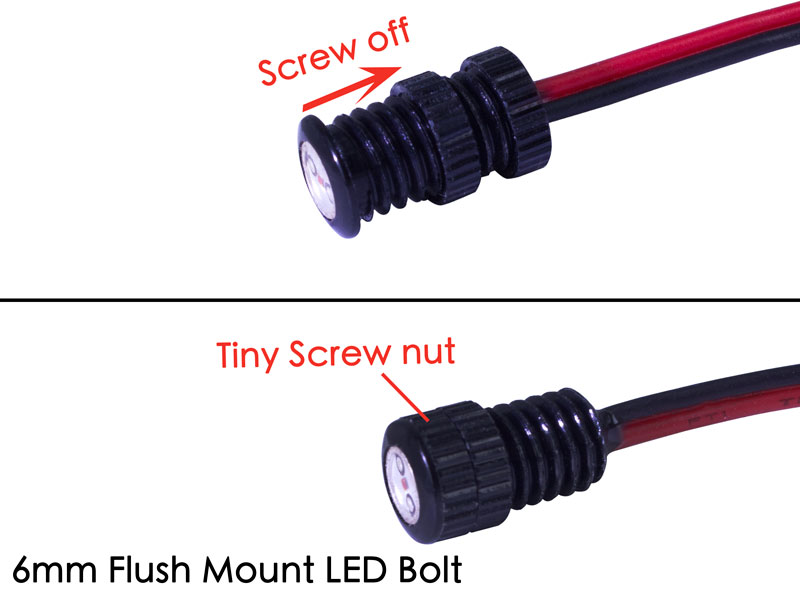

Super easy to install. Just drill an appropriate sized hole, feed the wires, and LED bolt through. Tighten the matching nut from the back side, and everything will stay in place. Connect the wires to any 12 volt power source.

All of our LED bolts are waterproof (both the aluminum and stainless steel models are IP68 certified).

Hole size? 6mm, 11mm, or 16mm (0.23", 0.43", or 0.63")

Are you seeking ultimate performance?
Want the best brightness possible?

We've got you covered. Choose our Premium Stainless Steel (3W) version, which packs a powerful punch of triple the lumens (yes, 3X the brightness!), in a durable 316 marine-grade Stainless Steel housing.

Designed for industrial environments, its guaranteed to shine bright for many years.

Our premium Stainless Steel (3W) version is only available with these options:

✓ Silver housing

Stainless Steel is darker than Aluminum

✓ 11mm (or 0.43")

For now, to keep things simple, we're just producing the premium Stainless Steel (3W) in the most popular 11mm (0.43") size.

✓ No Lens

We fill the top part with a durable 2-part epoxy, so nothing can touch the LED. Because there's no lens, the viewing angle is 180-degrees.

As an added bonus, it comes with a high quality marine grade cable, which is double insulated in a black sheath.

LED Bolt Comparison Aluminum vs Stainless Steel

◊ Comparison between 1W no lens bolt and 3W Stainless Steel bolt:
1 watt vs 3 watt warm white LED bolt

We use epoxy to seal both the top and bottom of the 3W Stainless Steel bolt:
Making LED Bolt waterproof

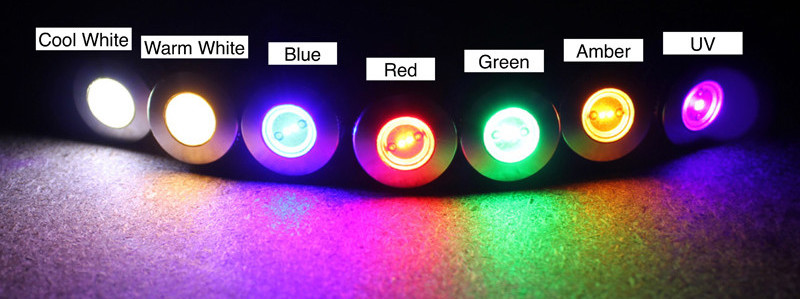

A new UV (ultraviolet/blacklight) color is now available, and its REALLY bright compared with most other UV LEDs

Product review & unpacking from a satisfied Oznium.com customer:

Are you interested in a Side View LED Bolt? Or for something less bright, check out our Aluminum LED Indicator Light.

Need metric drill bits?

Buy them conveniently from us in various sizes to match the diameter of your LED Bolts: 6mm, 11mm, and 16mm.

Need Rubber O-Rings?

For a water-tight seal around the bolt bezel and your panel.

Need more Nuts?

You can buy extras.

Flush Mount LED Bolt Photos & Videos

warm white vs neutral white vs cool white

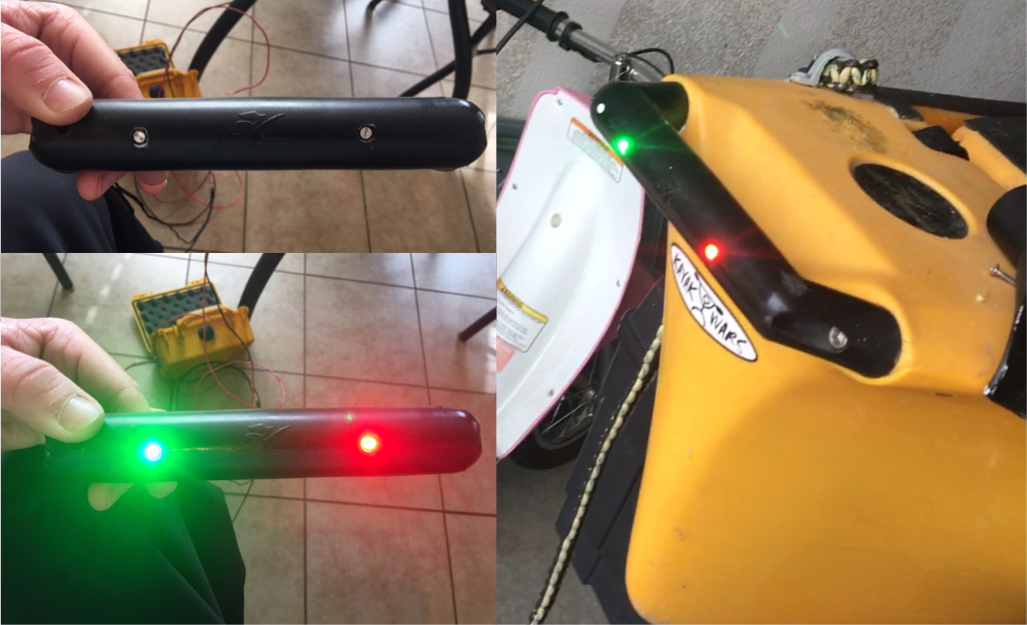

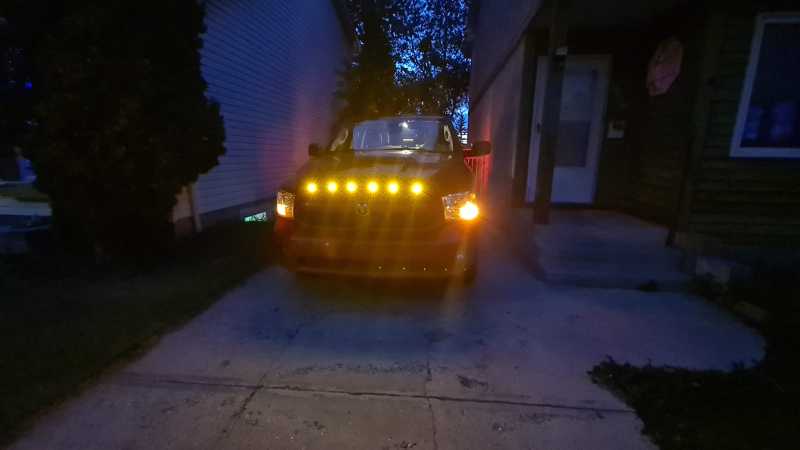

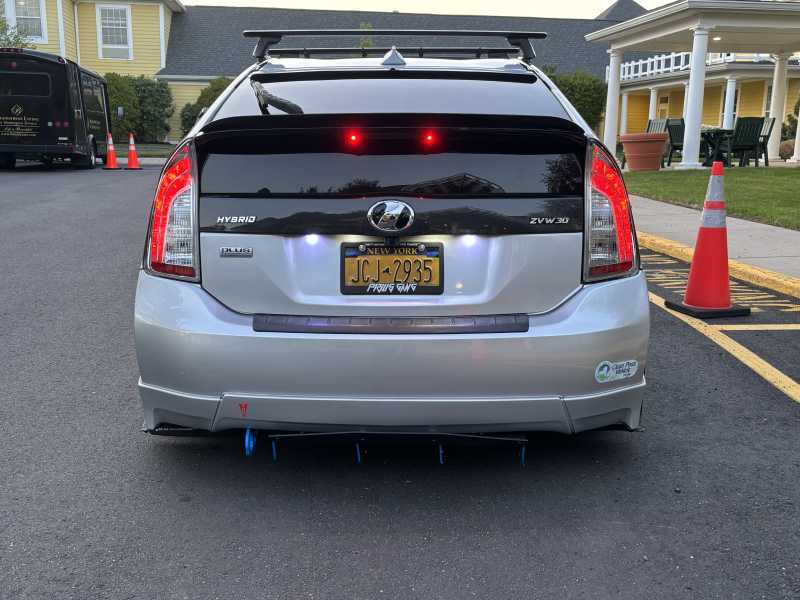

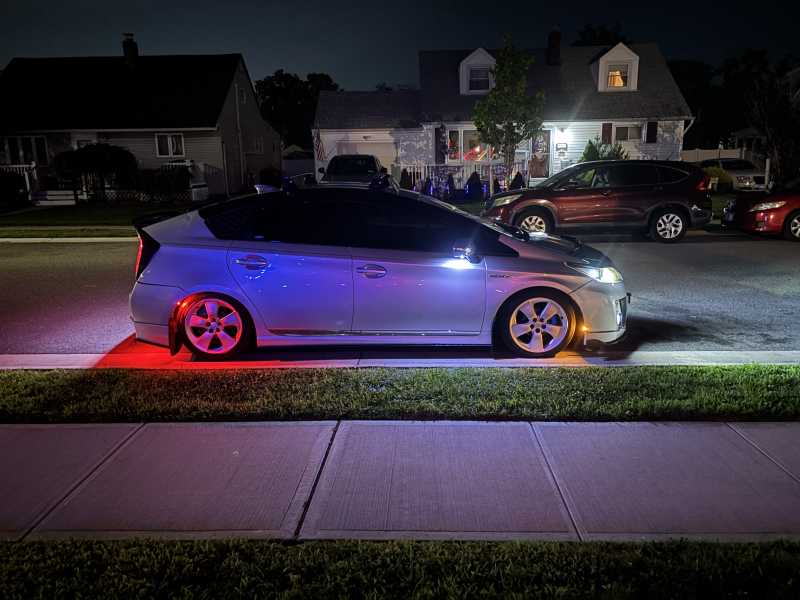

Action Shots

Flush Mount LED Bolt I installed a front Camera (taped) on my SUV, and added LED lights to assist in dark. LEDs are powered with Fog Lights.

Flush Mount LED Bolt Technical Info

Dimmable	Yes
IP Rating	1W and 3W : IP68 fully waterproof / submersible
Polarity Sensitive	Yes
Operating Voltage Range	12 VDC
Heat Dissipation	Below 45C
Wire Gauge	Aluminum 1W: 22AWG red/black zip cord Stainless Steel 3W: 22AWG 2-core Marine Grade
Wire Length	1 meter (3.3 feet)
Housing	1W: Aluminum 3W: Stainless Steel
Lens	PMMA
Beam Angle	With Lens : 60 degree Without Lens: 180 degree
Weight	6mm: 6g 11mm, No Lens: 15.8g 11mm, With Lens: 16g 16mm, No Lens: 23.2g 16mm, With Lens: 23.6g Stainless Steel: 32.4g

Aluminum (1W) version

Version	LED Color	CCT(K)/Wavelength(nm)	Lumen(lm)	Current @ 12VDC (mA)
6mm	Cool White	9000K+	5	18
6mm	Warm White	3000-3200K	6	18
6mm	Red	625	3	18
6mm	Green	525	6	18
6mm	Blue	470	1	18
6mm	Amber	595	2	18

Version	LED Color	CCT(K)/Wavelength(nm)	Lumen(lm)	Current @ 12VDC (mA)
11mm/16mm	Cool White	9000K+	33	37
11mm	Neutral White	6000-6500K	37	37
11mm/16mm	Warm White	3000-3200K	34	37
11mm/16mm	Red	625	12	37
11mm/16mm	Green	525	25	37
11mm/16mm	Blue	470	4	37
11mm/16mm	Amber	595	10	37
11mm/16mm	UV	410	0.2	75

Premium Stainless Steel (3W) version

Version	LED Color	CCT(K)/Wavelength(nm)	Lumen(lm)	Current @ 12VDC (mA)
11mm -3W	Cool White	9000K+	76	62
11mm -3W	Warm White	3700-3900K	80	56
11mm -3W	Red	625	31	82
11mm -3W	Green	525	79	45
11mm -3W	Blue	470	12	56
11mm -3W	Amber	595	20	70
11mm -3W	UV	410	0.3	69

- Download Dimension drawing spec sheets:

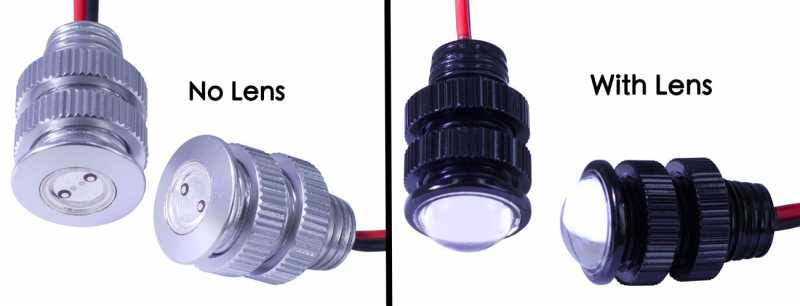

Without Lens:
6mm Without Lens
11mm Without Lens
16mm Without Lens
Premium Stainless Steel 11mm Without Lens

With Lens:
11mm With Lens
16mm With Lens

Thread size:
16 x 1, 11 x 1, 6 x 1
The thread angle is 60 degrees
Extra nuts are available here

If your LED Bolt is too bright, you can always dim it down with a resistor
This is of course 100% optional... If you're happy with the brightness, you don't need to use any external resistor.
How to dim LED bolt with resistor - less bright

How to dim LED bolt with resistor - less bright

You can experiment with a number of different resistors until you find a suitable brightness.
To start, we'd recommend ordering about 5 of the 1/2 Watt, 560 Ohm resistors.
You can then try wiring anywhere from 1 to 5 (or even more if you want) in series.

You can connect them to either the positive or negative wire.
It won't reduce nor damage the life of the LED. If anything, it should increase it slightly.

Here's a quick video to show how you can use the resistors:

In stock

Diameter

Color

Housing Color

Style

Lens

Quantity

$6.99

Want it delivered Tuesday, August 3? Order it in the next 17 hours and 41 minutes, and choose One-Day Shipping at checkout.

Customer questions & answers

Question:

I noticed that the spec sheet gives values at exactly 12 volts but a vehicle battery is around 13.8v and can be even higher when running. What is the max operating voltage? I am measuring almost 3 times the current at 13.8v as at 12v.

Answer:

Our Flush Mount LED Bolt can work with 12-14VDC. Most of our customers using them at the car as well.

Question:

What is the current rating for these? I want to wire them to a wall ac to 12Vdc converter.

Answer:

The bolts use different mA depending on size and color. That information is available here: https://www.oznium.com/led-bolts-prewired-leds/led-bolt#tech

Question:

Can I wire directly to 18v battery?

Answer:

Because these LEDs are designed to be powered by a 12 volt source, if you power them from an 18 volt source, they will light up, but their lifespan will be severely diminished. If you need a large quantity of LEDs, we can always make a custom version for you that works with 18 volts. Or if you just need a few, you could use resistors.

See more answered questions (42)

Customer Reviews

420 Reviews

2015 Jku flush mount foot well lighting

Manuel Avila from Chicago, IL

These lights are fantastic the did exactly what I wanted , I have followers on my page asking were they can purchase these BA lights!!😎🔥

LED BOLT (great)

Paul St. Pierre from Cranbrook, Canada

Put the flush mount led bolts in my grill.2018 GMC Canyon. Glad I did. Looks great.Thank you for making them.

6mm bolt led

michael Reinitz from Annapolis, MD

These are great for cosplay I'm using them on my master chief helmet

Great Light

Wally Yates from North Charleston, SC

Hello,
The lights are great for the interior curtsy lights. Small and puts out plenty of light. Super easy to mount and wire

Bright Little Bolts

Elmer from Wisconsin

I ordered (2) of the 11mm neutral light aluminium ones to add light to a woefully under-lit car cargo area. These throw some serious light. They took looking in the cargo area from an exercise in spelunking to and open field on a summer day. The housings feel solid, and the retaining nuts feel like they provide good locking. Where the wires enter the body the glue/sealant is well applied and offers strain relief, although this does add a couple mm of extra length which I had not accounted for in my space limited application. Overall the installation of these was exceptionally easy, and they provide great light. The only thing I cannot attest to is the longevity as of yet, but based on the rest of the construction I feel confident I shouldn't have to worry.

Very bright and nice flush fit.

Mark from Hibbing, MN

Great design for my use. I am using as an overhead dome light in my UTV. Small design and very bright for it's size.

Better than expected

Jonathan Jones from Wiggins, CO

They really are nearly perfectly flush. Because I opted for the ones with the lense, they do have a slight protrusion, but it's far better than any other option is found. The amount of wiring they come with is great, and the long, threaded bodies, mean you should be able to get them to be snug no matter what you're putting them in.

Awesome lights

Steve Petroff from Victoria Harbour, Canada

Used one of these as neutral indicator light on custom motorcycle project, worked very well in this application. Super Bright !

LED Bolt lights

Timmy McCoin from Gainesboro, TN

I ordered 11mm Flush Mount to light up the front deck of my bass boat during early morning tournament tackle prep and night fishing.They look awesome! Very pleased with the quality of these are amazing. Amazing how small yet super bright. Highly recommend these!

Great quality

F SALDANA from Redondo Beach, CA

Great product that is well made. Worked perfectly.
Fast and detailed shipping.
