Dual Intensity Brake Light Driver
Oznium's Dual Intensity Brake Light Driver is designed to enable your additional LEDs to function with a dual intensity feature, allowing them to be used for brake applications. This makes it perfect for enhancing the brake systems of cars and bikes.
Dual Intensity Brake Light Driver
Compatible with 12-24VDC Systems
It works with most vehicles and LEDs on the market. You can add any light bars or LEDs to be tail lights that have high/low brightness functions.
It works with most vehicles and LEDs on the market. You can add any light bars or LEDs to be tail lights that have high/low brightness functions.
Dimming via PWM Signal
PWM is efficient, allows precise brightness control, and extends LED lifespan by reducing thermal stress.
PWM is efficient, allows precise brightness control, and extends LED lifespan by reducing thermal stress.

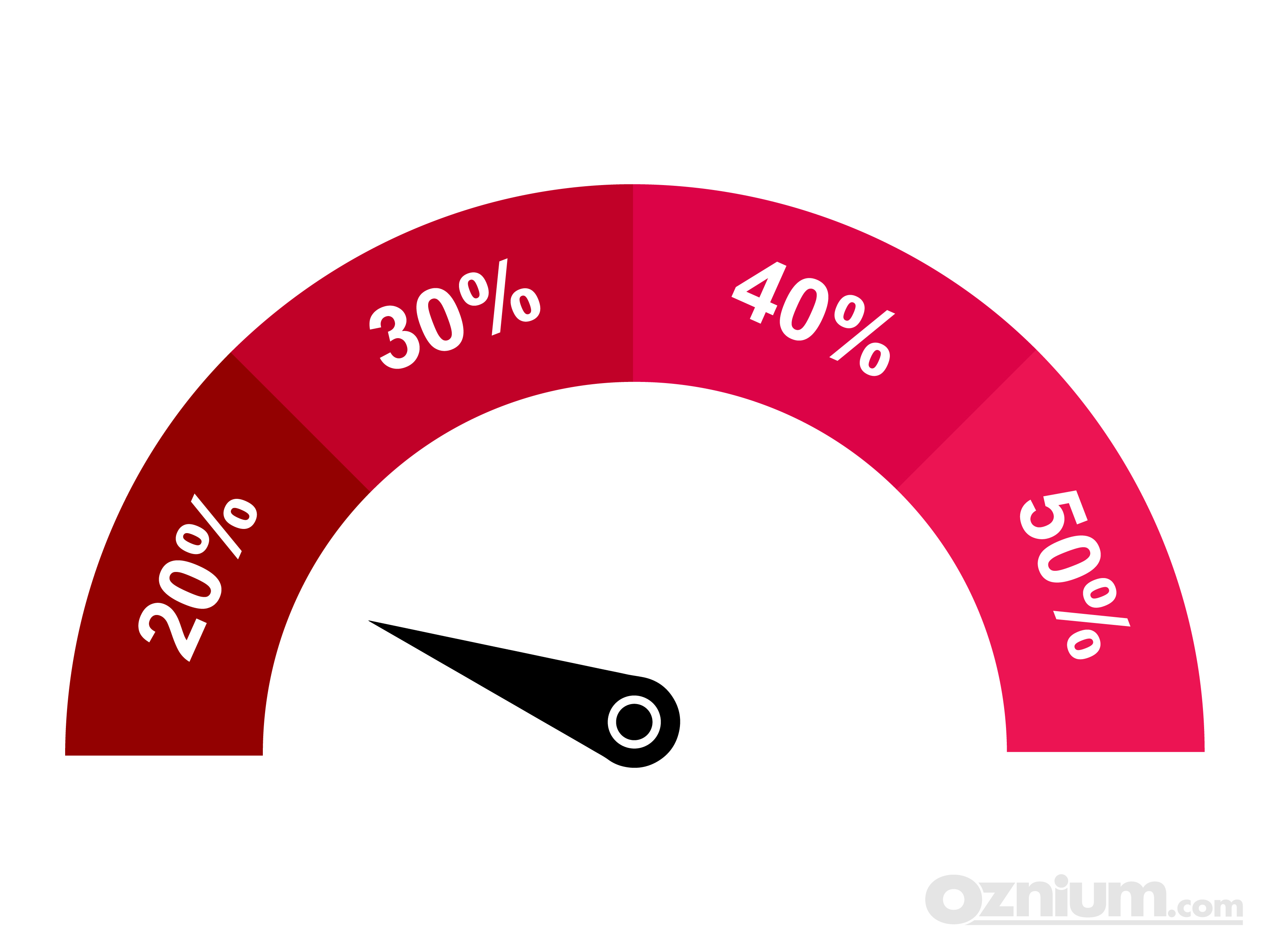

The Low-intensity Mode Offers Four Levels of Brightness
Choosing a brightness level from 20-50% in low intensity mode means you can adjust the brightness of your daytime running light.
Choosing a brightness level from 20-50% in low intensity mode means you can adjust the brightness of your daytime running light.

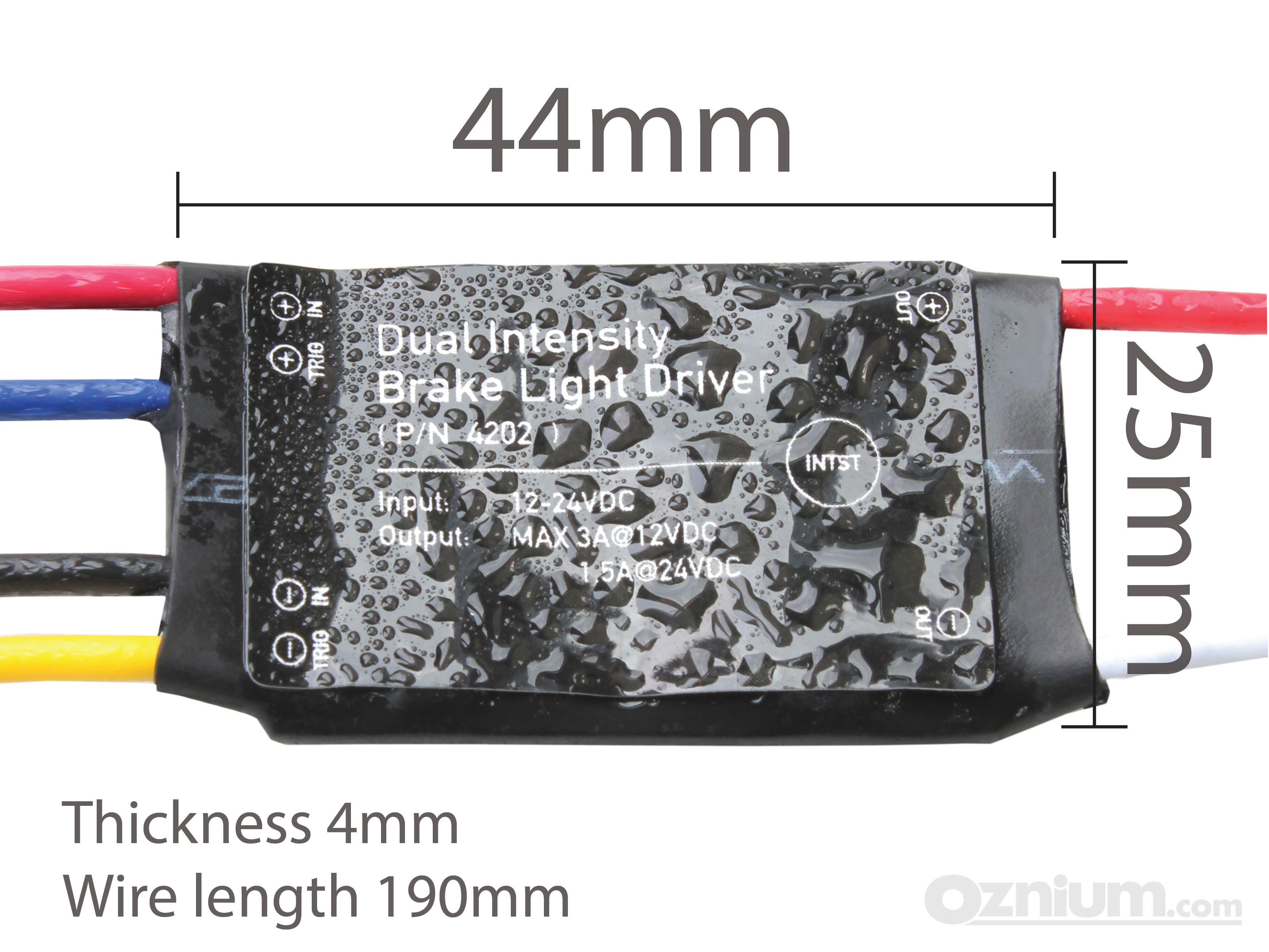

Small & Surface Waterproof
Just 5 x 3 cm in size, its surface is waterproof so you can easily hide or place it on your car or bike.
Just 5 x 3 cm in size, its surface is waterproof so you can easily hide or place it on your car or bike.
Dual Intensity Brake Light Driver
Oznium's Dual Intensity Brake Light Driver regulates the brightness of the LEDs using a PWM signal. In low intensity mode (standby, without any trigger), the LED brightness is reduced to a selectable range of 20-50%. When the Dual Intensity Brake Light Driver receives a trigger signal, the LED brightness increases to 100%. Additionally, this brake light controller prevents your LEDs from overloading and ensures they remain dimmed, thereby extending their lifespan.
Better Explanation In This Video!
Why Supporting Positive and Negative Trigger Signal?
Supporting both positive and negative signals, this dual-intensity LED brake light driver allows you to use it for other applications, not just for brake light applications.
So we designed the dual-intensity LED brake light driver to be able to receive the negative trigger signal from a motion sensor switch or PIR sensor for other applications, such as:
- Outdoor lighting: high brightness for strong light needs; low to save energy.
- Emergency lighting: high brightness for emergencies; low to conserve energy.
If you're looking to use the driver on a car or bike, just use the positive trigger function.
Looking for Switchback + Dual Intensity Brake Functions?
Are you looking to have Brake and Switchback (DTRL+Turn Signal) functions? You can have that functions by using Switchback Driver along with the Dual Intensity Brake Light Driver.How to wire them? Click below wiring diagram to zoom in!
Related Accessories
Flush Mount LED Bolt
IP68 waterproof LED bolt lights, small but bright and certified by UL.
Ultra Thin LED Light Bar
Waterproof Slim LED Light Bars
COB Dotless LED Strip Lights
Dotless, linear lighting effect LED strip lights
Premium Side View LED Bolt
Premium Side View LED Bolt Lights which emitting lights perpendicular to the surface its on
Drill Bit
Buy them conveniently from us in various sizes to match the diameter of your LED Bolts: 6mm, 11mm, and 16mm.
Mounting Bracket for Flush Mount LED Bolt
Elevate Your Lighting Installation with Oznium's New Flush Mount LED Bolt Bracket
DC Barrel Jack Adapter
These adapters allow you to convert your plug / jack / wires to each other.
Wire Splice Connector
A quick and easy way to splice LED wires together for your lighting project.
Quick Connector for COB Dotless LED Strip Lights
The Quick Connectors are designed to work with Oznium single color COB Dotless LED Strip Lights.
2 Core Marine Cable
Used for connecting LED strips or pretty much any other LED product, and extending wires.
18 Gauge Hookup Wire
18 gauge wire is very flexible and is perfect for installing cathodes, LEDs, meteor tubes, or switches.

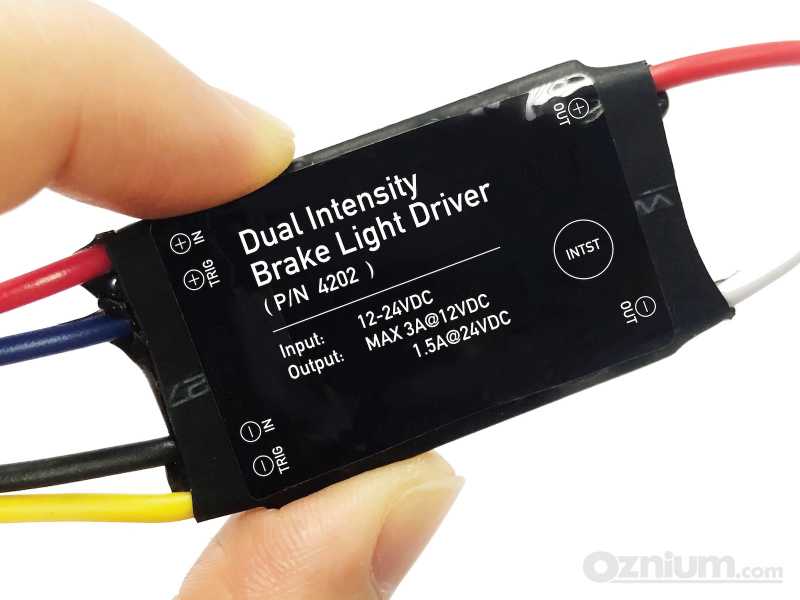

Dual Intensity Brake Light Driver Photos
Dual Intensity Brake Light Driver Technical Info
| Input Voltage | 12-24VDC |
| Output Voltage | Same as Input Voltage |
| Maximum Current | 3A@12VDC, 1.5A@24VDC |
| IP Rating | IP64 |
| Triggering | Either Positive or Negative Trigger |
| Brightness in Low Intensity Mode (Selectable) | 20%, 30%, 40%, 50% |
| Overload Protection | 4A Fuse |
Wiring:
